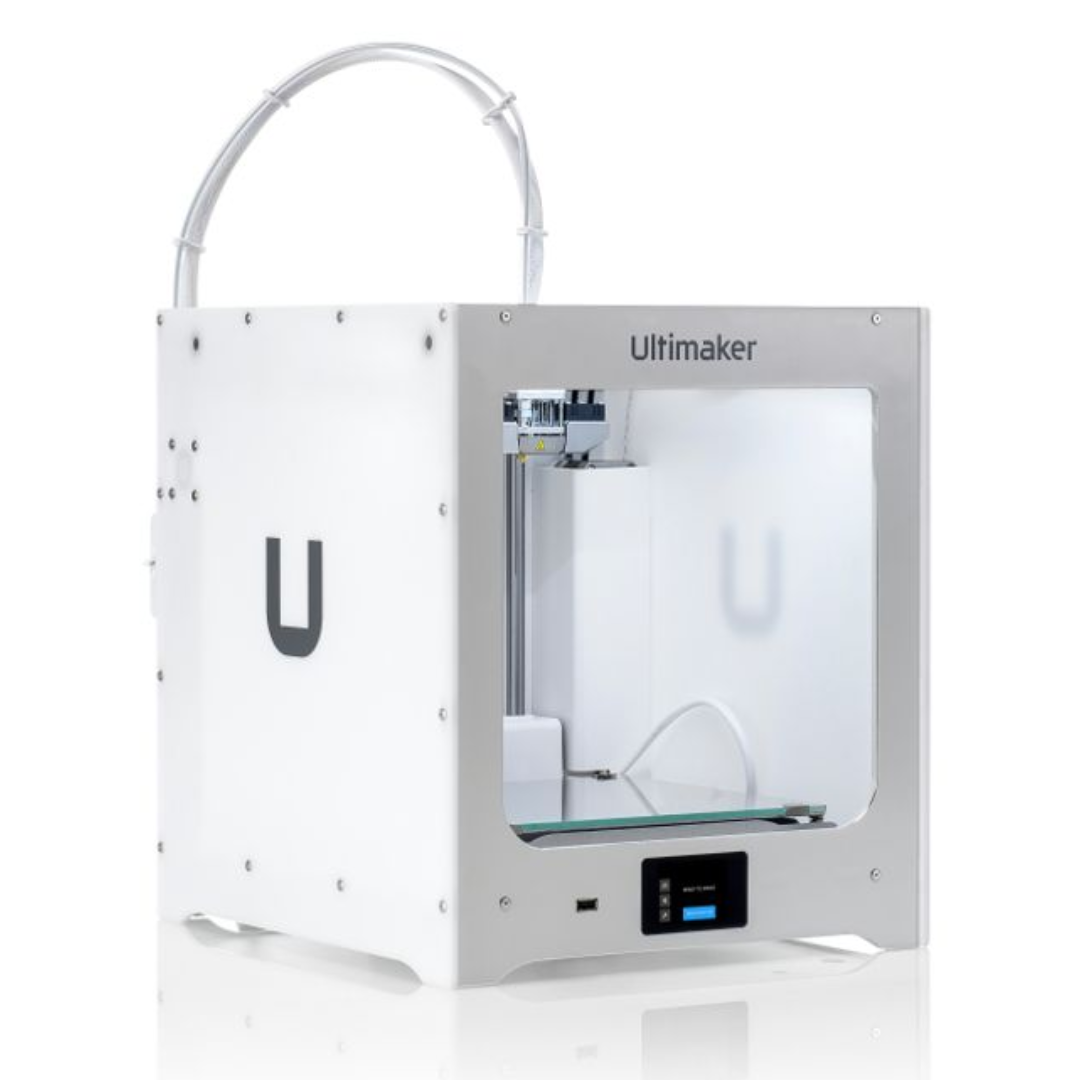

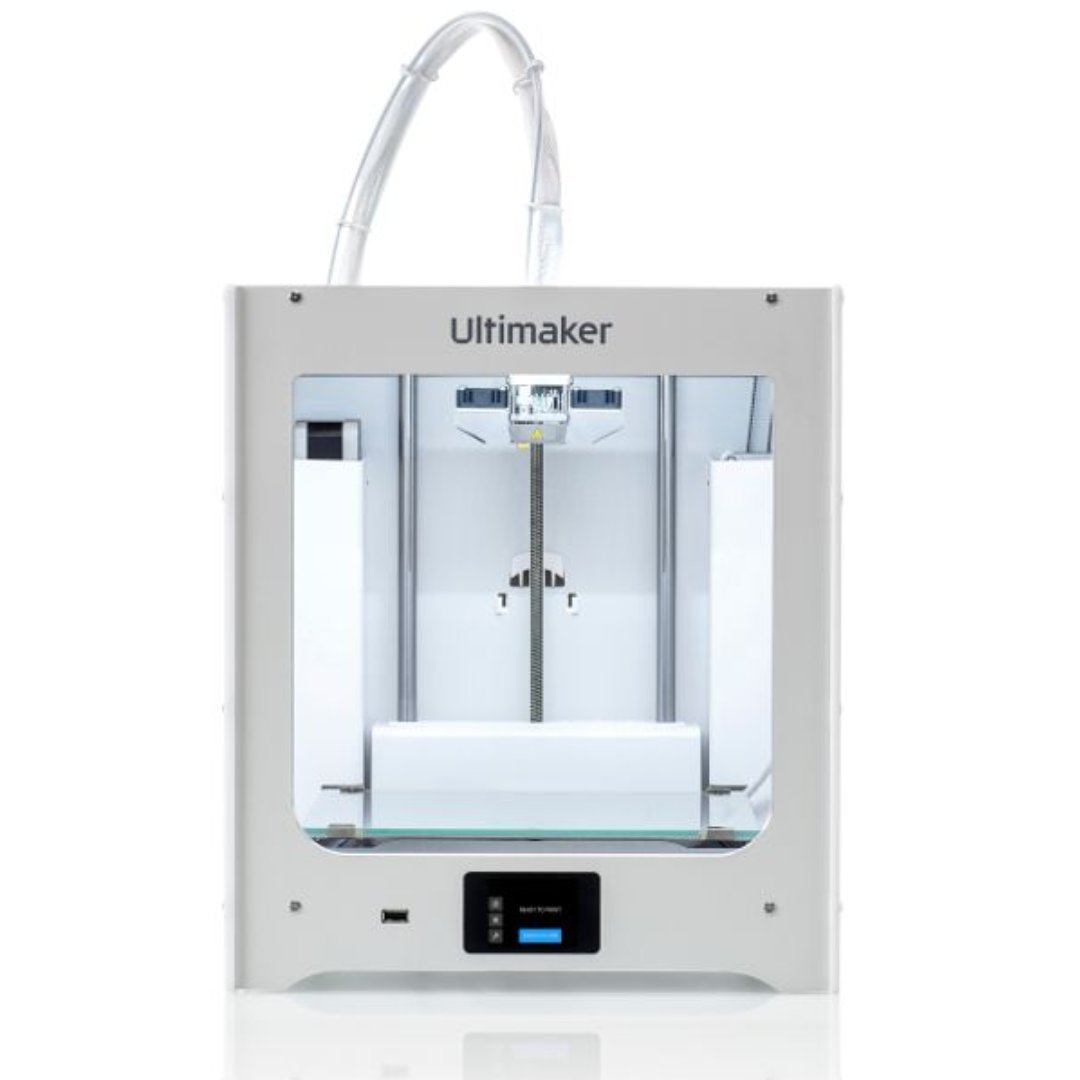

UltiMaker 2+ Connect
$2,750.00
The Ultimaker 2+ Connect is a reliable first step into the world of easy, remote 3D printing. It adds intuitive operation and deeper software connectivity.
Product Details
High Uptime — Low Maintenance
A clean and updated design keeps maintenance to a minimum – just 20 minutes per month. These tasks can be performed easily, without the need for special tools.
You can also switch out swappable nozzles in less than 5 minutes for high uptime, choosing between 0.25 mm for detailed prints, 0.8 mm for fast drafts or 3D sketches, 0.6 mm, or 0.4 mm
A clean and updated design keeps maintenance to a minimum – just 20 minutes per month. These tasks can be performed easily, without the need for special tools.
You can also switch out swappable nozzles in less than 5 minutes for high uptime, choosing between 0.25 mm for detailed prints, 0.8 mm for fast drafts or 3D sketches, 0.6 mm, or 0.4 mm
- Wide material choice. Ultimaker offers the widest material choice on the market. With an open filament system, you can always find the right material properties for your application – from stunning aesthetics to flexibility
- Easy setup. With a hardware installation that takes minutes, setting up the Ultimaker 2+ Connect is easy. It also features a more ergonomic feeder lever and improved assisted bed leveling
- Next-gen components. There's nothing better than waking up to a successful print. Thanks to a stiffer build platform and rigorously tested material profiles, you can trust the Ultimaker 2+ Connect to print reliably overnight or over the weekend
- A touchscreen. For every action, the 2.4" color touchscreen gives you intuitive control and step-by-step assistance. Changing material, adjusting the build plate, or checking your print status is just a tap away
- Network connectivity. Whether you're at home or in the office, sending print jobs to the Ultimaker 2+ Connect is a breeze. Via Wi-Fi or Ethernet, cloud 3D printing allows remote file transfer with added security from anywhere in the world.
Printing Properties:
Print Technology: | FFF |
Build Volume: | 22.3 x 22 x 20.5 cm [8.78 x 8.66 x 8.07 in] 10057 cm3 [613.6 in3] |
Filament Diameter: | 2.85 mm [.1122 in] |
Compatible Filaments: | PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, TPU 95A, PP Open Filament System |
Build Platform: | Heated glass build plate, maximum 100 C |
Build Platform Leveling: | Assisted manual leveling |
Extruders: | Single extrusion with swappable nozzles |
Nozzle Diameter: | 2x 0.4 mm included 0.25 mm, 0.6 mm, 0.8 mm available separately |
Nozzle Temperature: | 180-260 C |
Layer Resolution: | 0.25 mm: 150-60 microns 0.4 mm: 200-20 microns 0.6 mm: 400-20 microns 0.8 mm: 600-20 microns |
Extrusion Speed: | Maximum 24 mm3/second Nozzle dependent |
XY Positioning Precision: | 12.5 microns [0.00049 in] |
Z Positioning Precision: | 5 microns [0.00019 in] |
Operating Noise: | Maximum 50 dBA |
Operating Temperature: | 15-32 C [60-90 F] |
Physical Properties:
Dimensions: | 35.7 x 34.2 x 38.8 cm [14.06 x 13.46 x 15.28 in] |
Weight: | 10.3 kg [22.7 lb] |
Shipping Weight: | 16 kg [35 lb] |
AC Input: | 100-240V / 50-60HZ / 221w maximum output |
Storage Temperature: | 0-32 [32-90 F] |
Software:
Supported File Types: | STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG |
Printable Formats: | UFP |
Bundled Software: | Ultimaker Cura, Ultimaker Digital Factory |
Plugin Integration: | SolidWorks, Siemens NX, Autdesk Inventor |
Supported OS: | Windows Mac OS X Linux |
