UltiMaker S5 Pro Bundle
$10,800.00
Ultimaker S5 Pro Bundle
The Ultimaker S5 Pro Bundle transforms your 3D printing workflow – with automatic material handling, efficient air filtering, and filament humidity control. Together, these features unlock 24/7 productivity and demanding applications with an extended range of materials.
The Ultimaker S5 Pro Bundle comes with:
The Ultimaker S5 Pro Bundle transforms your 3D printing workflow – with automatic material handling, efficient air filtering, and filament humidity control. Together, these features unlock 24/7 productivity and demanding applications with an extended range of materials.
The Ultimaker S5 Pro Bundle comes with:
- 1x Ultimaker S5 3D printer
- 1x Ultimaker S5 Material Station
- 1x Ultimaker S5 Air Manager.
Product Details
The Ultimaker S5 Pro Bundle— industrial production power at your desktop.
With automatic material handling, efficient air filtering, and filament humidity control, users can unlock 24/7 productivity. These features open the possibility for demanding applications that use an extended range of materials.
The Ultimaker S5
With automatic material handling, efficient air filtering, and filament humidity control, users can unlock 24/7 productivity. These features open the possibility for demanding applications that use an extended range of materials.
The S5 Pro Bundle also offers users:
- Composite-ready dual extrusion
- Humidity-controlled storage for 6 spools
- The ability to filter up to 95% of ultrafine particles
- An enclosed build chamber
- Compatibility with over 90 materials
- Uninterrupted printing with automatic material switching
The Ultimaker S5 Pro Bundle is Composed of:
An award-winning, composite-ready 3D printer that is both reliable and easy to use. Designed with professionals, educators, and manufacturing applications in mind.

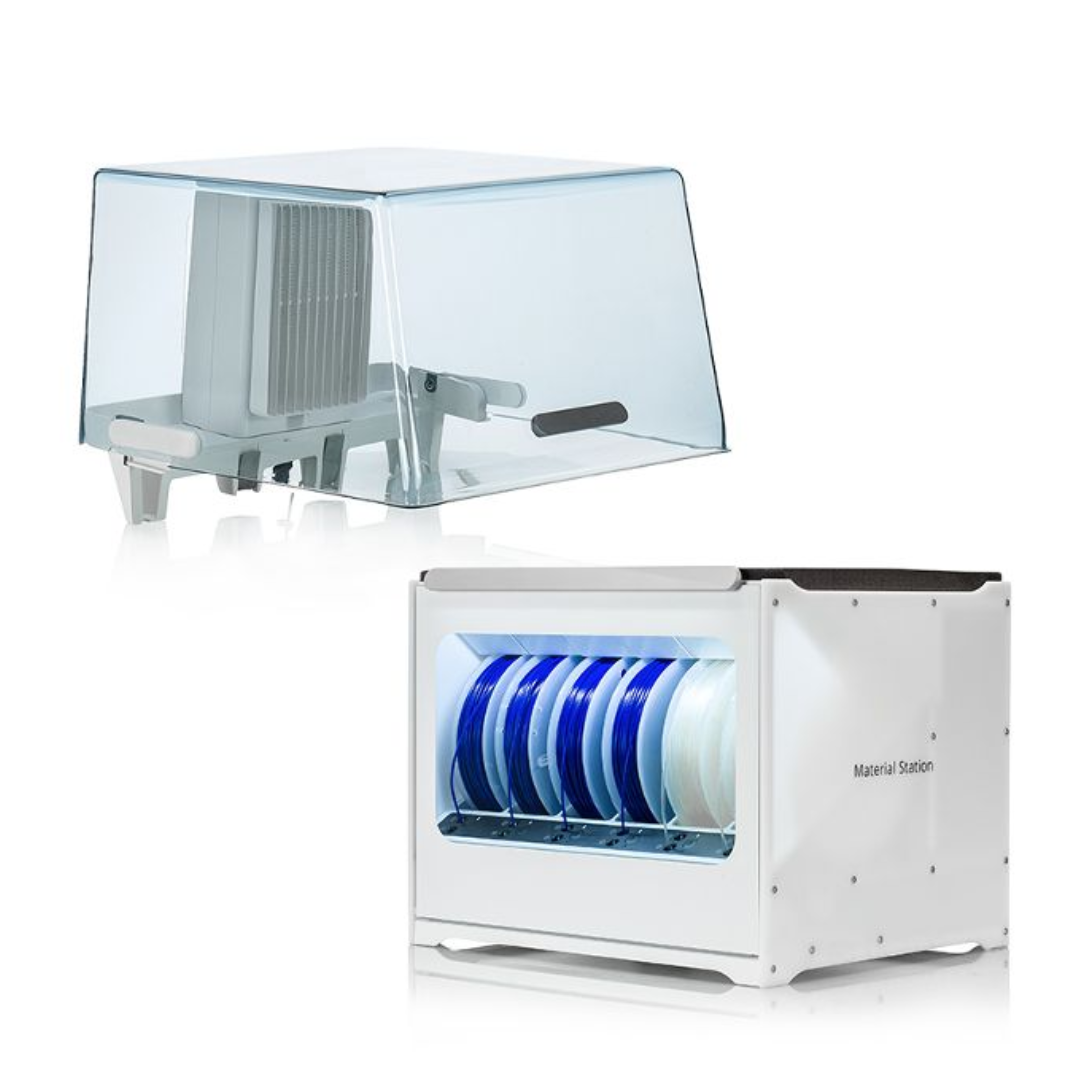

Material Station

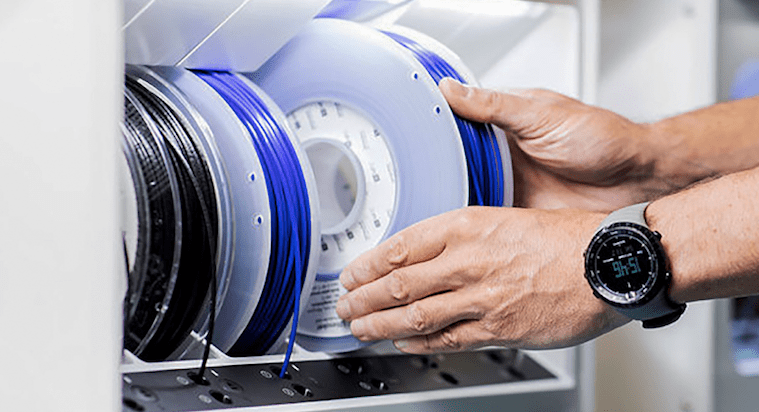

An ideal, humidity-controlled storage environment for 3D printing materials. Allows users to access up to 6 material spools with automatic filament switching capabilities included.Air Manager
Ensures a safe working environment when working with even more materials. The closed, inside-out airflow catches, traps, or diffuses up to 95% of UFPs.
Dimensions:
Build Volume: | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
Assembled Dimensions: | 495 x 500 x 1197 mm (19.5 x 19.5 x 47.1 inches) |
Print technology: | Fused filament fabrication (FFF) |
Weight: | 41.9 kg (92.4 lbs) |
Power Input: | 100-240 VAC, 50-60 Hz |
Maximum Power Output: | 600W |
Printer Properties:
Layer Resolution: | 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
XYZ Resolution: | 6.9, 6.9, 2.5 micron |
Feeder Type: | Dual-geared feeder, reinforced for composite materials |
Display: | 4.7-inch (11.9 cm) color touchscreen |
Print core replacement: | Swappable print cores |
Print Head: | Dual extrusion print head with an auto-nozzle lifting system and swappable print cores |
Nozzle Diameters: | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operation Parameters:
Filter Technology: | Replaceable EPA filter |
Air extraction rate: | 1 - 50 m³/h (35 m³/h nominal rate for most materials at 23 °C) |
Filter Efficiency: | Up to 95% |
Material Capacity: | 6 spools |
Compatible Filament Diameter: | 2.85 mm |
Compatible Spools: | Width: 50 - 70 mm (2 - 2.7 in) Diameter: 197 - 203 mm (7.8 - 8 in) Core diameter: > 98 mm (3.8 in) |
Operating Sound: | < 51 dBA |
Operating Ambient Conditions: | 15 - 30 °C (59 - 86 °F), up to 70% relative humidity |
Non-Operating Temperature: | 0 - 32 °C (32 - 90 °F) |
Ecosystem:
Supplied Free Software: | Ultimaker Cura – print preparation software Ultimaker Digital Factory – printer management software |
Supported OS: | MacOS, Windows, and Linux |
Plugin Integration: | SolidWorks, Siemens NX, Autodesk Inventor |
Supported File Types: | Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
File Transfer: | Wi-Fi, Ethernet, USB |
